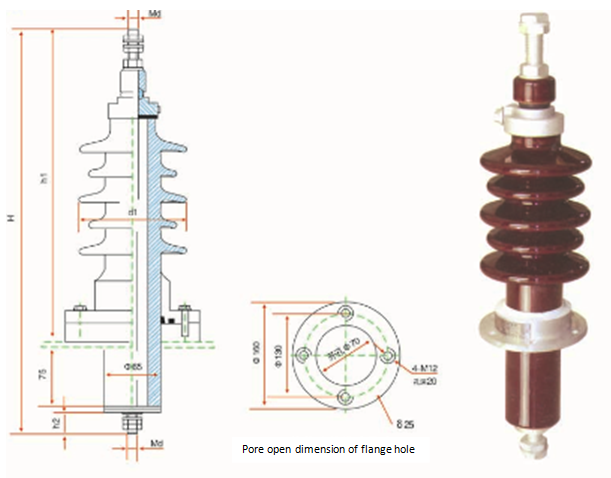

¡ö Outline dimension
¡ö Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
Creep age Distance (mm) |
Weight Kg |
||||
|
H |
h1 |
h2 |
Md |
d1 |
|||||
|
WT.0300.12.F |
BDF-12/300 |
450 |
344 |
25 |
M12 |
115 |
Single Umbrella |
270 |
3.9 |
|
WT.0400.12.F |
BDF-12/400 |
465 |
352 |
30 |
M16 |
115 |
Single Umbrella |
270 |
4.3 |
|
WT.0600.12.F |
BDF-12/600 |
475 |
357 |
35 |
M20 |
115 |
Single Umbrella |
270 |
4.9 |
|
WT.0300.24.F |
BDF-12/300 |
490 |
384 |
25 |
M12 |
115 |
Single Umbrella |
340 |
4.2 |
|
WT.0400.12.F |
BDF-24/300 |
505 |
392 |
30 |
M16 |
115 |
Single Umbrella |
340 |
4.5 |
|
WT.0600.12.F |
BDF-24/600 |
515 |
397 |
35 |
M20 |
115 |
Single Umbrella |
340 |
5.2 |
|
WT.0300.24.F.W |
BDF-24/300 |
490 |
384 |
25 |
M12 |
125 |
Big and small umbrellas |
420 |
4.9 |
|
WT.0400.12.F.W |
BDFW-24/400 |
505 |
392 |
30 |
M16 |
125 |
Big and small umbrellas |
420 |
5.2 |
|
WT.0600.12.F.W |
BDFW-24/600 |
515 |
397 |
35 |
M20 |
125 |
Big and small umbrellas |
420 |
5.9 |
