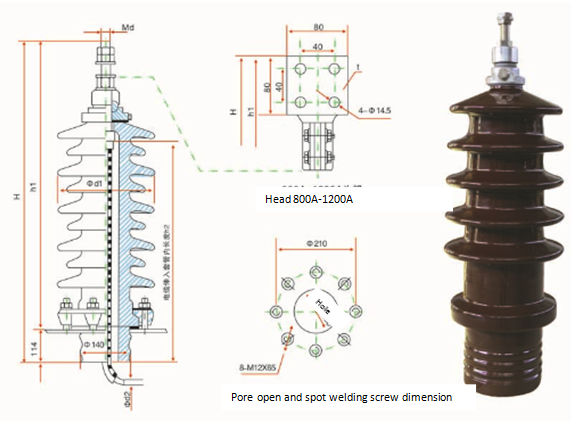

¡ö Outline dimension
¡ö Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
No of Sheds |
Creep age Distance(mm) |
Weight Kg |
||||||
|
H |
h1 |
h2 |
Md |
d1 |
d2 |
t |
||||||
|
WT.0035.35.JL |
BJL-35/35 |
650 |
536 |
466 |
M16 |
210 |
8 |
|
Single Umbrella |
5 |
650 |
16 |
|
WT.0100.35.JL |
BJL-35/100 |
650 |
536 |
466 |
M16 |
210 |
10 |
|
Single Umbrella |
5 |
650 |
16 |
|
WT.0250.35.JL |
BJL-35/250 |
650 |
536 |
466 |
M16 |
210 |
20 |
|
Single Umbrella |
5 |
650 |
16 |
|
WT.0400.35.JL |
BJL-35/400 |
650 |
536 |
466 |
M16 |
210 |
23 |
|
Single Umbrella |
5 |
650 |
16 |
|
WT.0600.35.JL |
BJL-35/600 |
650 |
536 |
466 |
M20 |
210 |
27 |
|
Single Umbrella |
5 |
650 |
16 |
|
WT.0800.35.JL |
BJL-35/600 |
750 |
636 |
466 |
M24 |
210 |
30 |
12 |
Single Umbrella |
5 |
650 |
18 |
|
WT.1000.35.JL |
BJL-35/1000 |
750 |
636 |
466 |
M30 |
210 |
35 |
12 |
Single Umbrella |
5 |
650 |
18 |
|
WT.1200.35.JL |
BJL-35/1200 |
750 |
636 |
466 |
M33 |
210 |
40 |
12 |
Single Umbrella |
5 |
650 |
19 |
|
WT.0035.35.JLW |
BJLW-35/35 |
650 |
536 |
466 |
M16 |
225 |
8 |
|
Big and small umbrellas |
10 |
900 |
24 |
|
WT.0100.35.JLW |
BJLW-35/100 |
650 |
536 |
466 |
M16 |
225 |
10 |
|
Big and small umbrellas |
10 |
900 |
24 |
|
WT.0250.35.JLW |
BJLW-35/250 |
650 |
536 |
466 |
M16 |
225 |
20 |
|
Big and small umbrellas |
10 |
900 |
24 |
|
WT.0400.35.JLW |
BJLW-35/400 |
650 |
536 |
466 |
M16 |
225 |
23 |
|
Big and small umbrellas |
10 |
900 |
24 |
|
WT.0600.35.JLW |
BJLW-35/600 |
650 |
536 |
466 |
M20 |
225 |
27 |
|
Big and small umbrellas |
10 |
900 |
24 |
|
WT.0800.35.JLW |
BJLW-35/600 |
750 |
636 |
466 |
M24 |
225 |
30 |
12 |
Big and small umbrellas |
10 |
900 |
26 |
|
WT.1000.35.JLW |
BJLW-35/1000 |
750 |
636 |
466 |
M30 |
225 |
35 |
12 |
Big and small umbrellas |
10 |
900 |
26 |
|
WT.1200.35.JLW |
BJLW-35/1200 |
750 |
636 |
466 |
M33 |
225 |
40 |
12 |
Big and small umbrellas |
10 |
900 |
27 |
